The 5 Best Multifunction Heat Press Machines | 5 in 1 / 6 in 1 / 8 in 1

What is the best multifunction heat press machine? Or, before we go too far, what on earth is a multifunction heat press machine!?


Well, multifunction heat press machines are presses that can not only press t-shirts and other flat items, but which also take attachment presses for pressing hats, caps, and more. This is why they are also known as 5 in 1, 6 in 1, or 8 in 1 heat press machines.


In this article we will:

  • give an overview of what these machines are
  • how they work
  • whether or not they might be for you
  • and most importantly, which is best!


The Best Multifunction Heat Press


best multifunction heat press machine 8 in 1

The HPN Sig. Series 8 in 1 Multifunction Heat Press

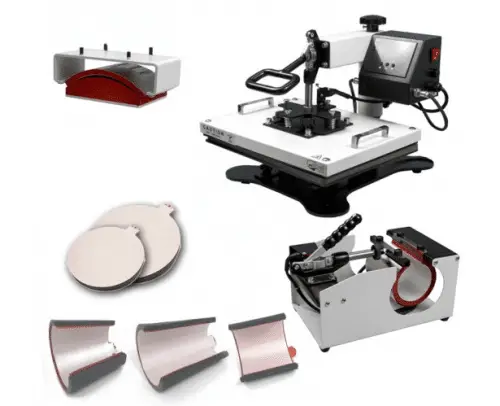

To reiterate: multifunction heat press machines are those which have a standard flat heat platen for pressing t-shirts and other flat substrates, but also take attachment presses or platens in order to press on other non-flat surfaces.


They generally have an outlet on the control panel, usually below the digital time and temperature display, which you plug the different heat platens into. However, cap press platens are usually installed by replacing the flat platens on the main heat press structure.


Some of these machines are ‘five in one’, some are ‘six in one’, while others are ‘eight in one’, or even greater.


What Attachments Do They Come With?


The attachments that generally come with these machines are:

  • hat/cap press platens
  • attachment mug press machine
  • attachment plate press platens


And, of course, they also have a t-shirt heat press platen which is usually 12 x 15 or 15 x 15 inches.


There are also multifunction machines, like this one from Heat Press Nation, that are 12 in 1! This press also contains a shoe heat press, a flask attachment, and more.


Multifunction machines have more or less attachments because they come with different sizes of mug or plate attachments.



 The Best Multifunction Heat Press Summary


Down below are some of the best multifunction heat press machines.


The first 2 machines listed below come from Heat Press Nation. HPN machines cost more, but they are better. If you’re buying for business or your machine is for frequent use, I would choose from their options.


After the HPN machines we’ve got the best selling and best rated Amazon multifunction heat presses. These machines are generally not as good, nor as durable, but are totally fine for home and craft use.


One important thing I would keep in mind when considering these machines is ‘what size t-shirt press do I need?’ The multifunction presses come with either 12 x 10, 12 x 15, or a 15 x 15 inch flat t shirt platens.


HPN™ Black Series™ 8-in-1 15″ x 15″ Multifunction Heat Press Transfer Machine


HPN™ Black Series™ 8-in-1 15" x 15" Multifunction Heat Press Transfer Machine


The HPN Black Series Multifunction heat press is an 8 in 1 machine with the following attachments included:

  • 15 x 15 inch t-shirt press
  • Hat/Cap Heating Element
  • 5 inch Ceramic Plate Heating Element
  • 6 inch Ceramic Plate Heating Element
  • Standard 11oz Mug/Cup Heating Element
  • Espresso Mug/Cup Heating Element
  • Medium Tapered Mug/Cup Heating Element for Latte Mugs
  • Large Tapered Mug/Cup Heating Element for Latte Mugs and Pint Glasses


Heat Press Nation Signature Series Multifunction Heat Press Machines


HPN™ Signature Series™ 15" x 15" 12-in-1 Multifunction Heat Press


The Signature Series Multifunction Heat Press Machines are a step up from the Black Series. They are also available with a range of attachments:

You’ll notice that the 8 in 1 heat press can be bought with 2 different sizes of t-shirt press, while the 12 in 1 is for sale in the 15 x 15 inch size.


F2C Multifunction Heat Press Machines


f2c multifunction heat press machine review


The F2C 5+-in-1 presses are among the top rated machines on Amazon, and also a lot cheaper than the HPN options (though obviously not as good either!).


In the F2C range there are 2 options:


Mophorn Multifunction Heat Press Machines


Mophorn Heat Press Machine 12x15 inch T-Shirt Heat Press Transfer Combo Swing-Away Presser Mug Hat Press 5IN1 Digital Multifunction Transfer

The Mophorn Multifunctions are another top seller on Amazon.


They are for sale in the following styles:


CO-Z Multifunction Heat Press


co-z multifunction heat press machine


And the last recommended Multifunction Heat Press brand is CO-Z.


They have two choices in their range, the only difference being the size of the t-shirt press:


How To Use Multifunction Heat Press Machines


The 3+ attachment presses connect electronically through the main outlet on the control box of the t-shirt press. However, there are generally differences in how they attach to the main body of the machine.


Mug Press


The mug press is usually a separate device that plugs into the main control of the heat press. It works alongside the heat press, unlike the other attachments that screw onto the press in the place of existing platens.


The typical sizes of mug press attachments are:

  • 2 – 2.75 inch diameter (6OZ)
  • 3 – 3.5 inch diameter (11OZ)
  • 12oz latte mug (Cone)
  • 17oz latte mug (Cone)


These sizes are true for the Mophorn 8 in 1, but whichever press you go with you will need to check they have the size that you’re after.


When you’ve chosen the size and have set everything up, it can be a good idea to test that the pressure is set right before plugging it in. You may need to make slight adjustments to ensure a tight (but not too tight) clamp, and it is better to do this before it’s heated.


You will need to apply the transfer to your mug with heat tape in preparation for pressing. This will ensure your transfer stays in place.


The mug press will heat up once you have plugged it into the main machine. You will also set the time and temperature on the main control as you usually would.


Once the attachment is plugged in and the appropriate time and temperature have been set and reached, you can slip your mug into the machine and wait for it to finish. Mug transfers tend to take much longer than a t-shirt press – generally needing over a minute.


Hat & Cap Press


The hat/cap press is perhaps the most difficult attachment to use on these machines because it generally requires you to unscrew and remove both the top and lower platens. The hat/cap platens are then screwed into their place and the top platen is connected to the control panel.


The hat/cap press is often a one size fits all kind of deal. You will only receive one attachment with any given multifunction heat press. You can usually press on either the bill or the main body of the cap – or both if you like!


The top platen of the cap press will heat up for you to do the press. Heat tape can also be very helpful when doing cap transfers because of the awkwardness of the curves.


Plate Press


The plate press is usually easier to attach than the cap press. With this one you only need to remove the top heat platen and screw in the plate press.


Again, as with the mug presses, different models and different brand machines will come with different sized plate press attachments.


You are likely to get one or more of the following sizes:

  • A 5 inch maximum diameter
  • A 6 inch maximum diameter


Again, it’s always a good idea to set the right pressure before everything else is ready to go. You will likely need to turn the pressure knob all the way down for plates.


Who Should Get A Multifunction?


The cheaper multifunction machines are best for:

  • Someone who likes to do everything!
  • Home crafts and hobby use
  • Home-school projects
  • Those with a limited budget
  • Beginners & learners


The more expensive HPN multifunction machines are best for:

  • Business purposes
  • Those with a higher budget
  • Those who want their machine to last a long time
  • Those wanting a high quality result
  • People who will use the machine often


Possible Problems With Multifunction Heat Presses


Here are a few of the possible problems (particularly with cheaper machines):

  • It’s a hassle unscrewing and re-screwing the platens off and on
  • You will likely end up stripping the screws if you are moving platens around often
  • The screw holes become loose after prolonged use
  • The 15 x 15 platen is large and heavy and can be difficult to switch out or put back on
  • You have a bunch of spare attachment platens that you need to store carefully so they do not get bent or damaged
  • The wires in the attachment cords can be damaged through frequent switching in and out


The alternative to multifunction machines is to get dedicated versions of the presses:


But multifunctions can be a lot of fun for all those who just want to try making all sorts of things from time to time, but don’t want to have tons of heat presses around the home!


Thanks for reading this post. Have you used a multifunction heat press? What do you think of them? Leave us a comment down below.
